| Brand | SGPWATT |
| Recommended Uses For Product | Office, Vehicle, Farm, Home |
| Power Source | Solar and Battery Powered |
| Wattage | 6500 watts |

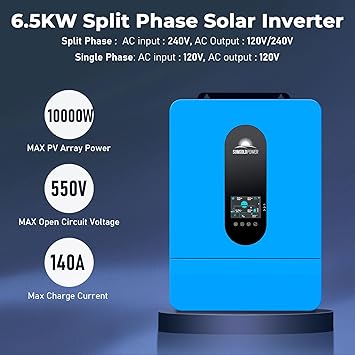

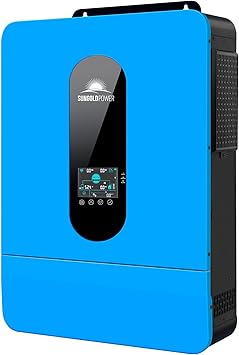

| Model Name | 6500W 48V Split Phase Solar Inverter |
- 【Functional solar charge inverter】: 6.5KW DC 48 volt Pure Sine Wave Solar Inverter Combined with Max. 140A battery charging, 2 MPPT Solar controller inbuilt, Max.Voltage of Open Circuit : 550VDC, Split phase (120V/240V) or Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.Parallel up to 6 units
- 【Stable AC output and Smart Protection】:Rated Output Power:6500W, Max Peak Power:13,000VA, loaded motor capacity 4HP, PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection,Over-load protection and so on.
- 【Four charging / Output modes】: Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.
- 【Time-slot charging/discharging function】:The SPH series is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.
- 【Battery type】: 6500W DC 48V inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. And supports battery-free. When the lithium battery is dormant, the mains power and photovoltaics can activate the lithium battery. Support Can, USB and RS485 communication with SunGoldPower batteries.














SUNGOLDPOWER 8000W 48V Hybrid Inverter Verified Buyer –
Yifu Xu Verified Buyer –
Very happy with it running all my appliances and devices, had some difficulties at first, contacted their technicians and all issues were resolved
Lucy Brown Verified Buyer –
Working great so far
JAMES H. Verified Buyer –
After a lot of research, I chose this 10KW inverter/charge controller for my first solar system and I’m very happy that I did. It has been running flawlessly for 5 months now. Currently I have 3.6KW PV array on 1 of the 2 PV channels and 21 KWHrs of LIFEPO4 battery capacity. The output of inverter is wired to my home panel via multiple single circuit transfer switches. I’m a retired controls engineer with a small business at home so this type system works great for me. I can selectively power any circuit in my home except a 13KW tankless water heater. I installed the system primarily for grid down backup but I’ve used it so far to shave around 75% off my electric bill. Had a minor issue during during startup and contacted Sungold. They responded promptly but I had already found problem was insufficient battery for a large inverter and corrected. Sunny also contacted me recently to follow up on problem. I highly recommend.
Eric Paul Timmins Verified Buyer –
Installed 2 of these in split phase and run my whole house and garage flawlessly
EH Verified Buyer –
In short, the AC in/out terminals are not designed to accommodate AWG 6 wires (as required for ~50A power, per the manual). I tried everything—clampers, ferrules, lugs—but nothing worked with the default terminals. I eventually managed to connect it. It’s currently working with batteries and the kitchen outlet breaker, and seems to be working fine.
Aside from that, it’s an okay inverter.
greg doud Verified Buyer –
Received and installed my inverter as an off grid solution to power my pool equipment. System uses PV, Battery and Mains thru a transfer switch. Install and Configuring was straight forward, and Inverter communicated with my battery (RuiXu 48/16Kw) just fine. System is working and switching between power sources as expected using setting 01 at SOL and Battery Charge at CSO. I did initially have an issue with battery not charging at full 60A capability and some settings stuck, but after a factory reset everything works as expected. Support for my issue was prompt ( chat immediately and followup email the next day) so no complaints there.
robert P Verified Buyer –
After a lot of research, I chose this 10KW inverter/charge controller for my first solar system and I’m very happy that I did. It has been running flawlessly for 4 months now.I am very happy with this sungold 10K inverter very easy to install user friendly i would recommend this inverter to any one.
