Overview
| Operation Mode | OFF-NONE-ON |
| Current Rating | 15 Amps |
| Operating Voltage | 120 Volts |
| Contact Type | Normally Closed |
| Connector Type | Plug In |
| Brand | KITONLA |
| Terminal | Screw |
| Item dimensions L x W x H | 4.53 x 3.35 x 9.65 inches |
| Circuit Type | 3-way |
| Contact Material | Stainless Steel |
- [Product Function] This product can provide switching between AC INPUT 2 (Utility or Shore Power) and AC INPUT 1 (Inverter or Generator) AC source. When AC INPUT 2 is powered, the load power will be switched to AC INPUT 2. When AC INPUT 2 is powered off, the load power will be switched to AC INPUT 1.
- [Product Parameters] Input or Output Voltage: AC 90 – 135V 50/60Hz. Maximum Current: 15 Amp. Transfer Time: 30 milliseconds. For most smart devices or computers, a 30ms switching action will not impact their normal functionality.

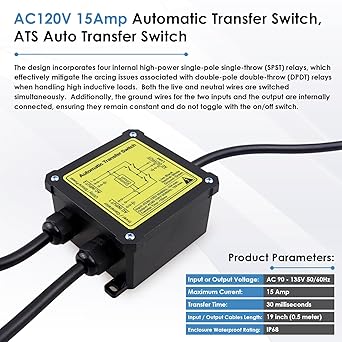

- [Excellent Design] The design incorporates four internal high-power single-pole single-throw (SPST) relays, which effectively mitigate the arcing issues associated with double-pole double-throw (DPDT) relays when handling high inductive loads. Both the live and neutral wires are switched simultaneously. Additionally, the ground wires for the two inputs and the output are internally connected, ensuring they remain constant and do not toggle with the on/off switch.
- [Premium Materials] The enclosure is made of durable polycarbonate (PC) with an IP68 waterproof rating, suitable for indoor and outdoor use. It has a V1 flame retardant rating for safety in various environments. The sealing material is silicone rubber, offering excellent moisture and dust protection. Additionally, the external screws are made of 304 stainless steels, enhancing durability and corrosion resistance.

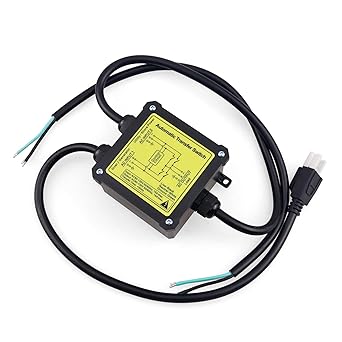

- [Cable Specific Configuration] AC INPUT 1 cable: Length 19 inch (0.5 meter), US standard NEMA 5-15P 3 prong plug. AC INPUT 2 and AC OUTPUT cables: Length 19 inch (0.5 meter), 14AWG (2.08 square millimeter) x 3 cores.
