| Brand | Good BNTai |
| AC Adapter Current | 63 Amps |
| Material | Polyvinyl Chloride (PVC) |
| Number Of Circuits | 9 |
| Phase Type | Three Phase |

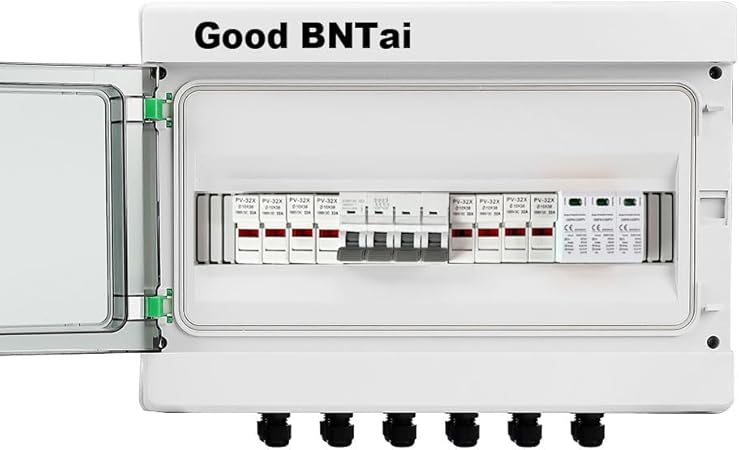

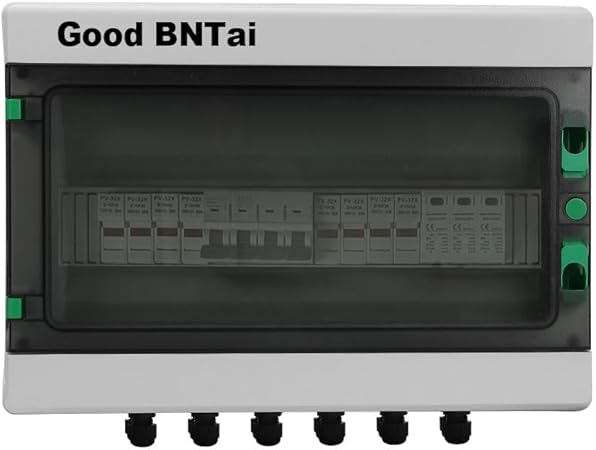

- High reliability: Professional PV combiner box is suitable for your Photovoltaic On/Off-Grid Solar Power Generation Systems. Which makes your solar panel system work reliably and safety. With multifunction: PV array input with first class combination, Quickly cut off circuit, anti-thunder protection, anti-reverse, overload, etc.
- Strong adaptability: The simple installation, the simplified system wiring, the convenient wiring. Strict test for high and low temperature, used widely. Circuit breaker can provide short circuit fault protection and controls the combiner box output. Here is a Surge Protective Device/Lighting Arrester provides lightning protection. The “Green” indicates Normal, once it changes into “Red”. Remember to replace the SPD with a new one.
- Flexible configuration: IP65 design, waterproof, anti dust and anti ultraviolet. Used for single crystal silicon solar modules, polycrystalline silicon solar modules, thin film solar modules. Current rating of the photovoltaic fuse, circuit breaker, load isolation switch is modified.
- High quality wires: All wires are pre-wired in the box. Our solar combiner box is used professional wires that are especially for solar system. Built-in with a ground wire connector, the ground wire installation is available. Please ensure the current and voltage of single PV array doesn’t exceed 10A/250VDC. Then you can connect solar panel to the combiner box.
- BNTPV/4-1 combiner box is suitable for inverter (MAX input voltage DC 1000V, 4 PV input channel, 1 output channel, single MPPT inverter). Box is made of PVC engineering materials, with test for fire retardant, temperature rise, anti impact, anti ultraviolet and other testing. IP65 protection grade.
